Robotic Hand - PCB Files

Robotic Hand - PCB Files

$0.00
$0.00
Contact Us for Additional Details
  • Description:

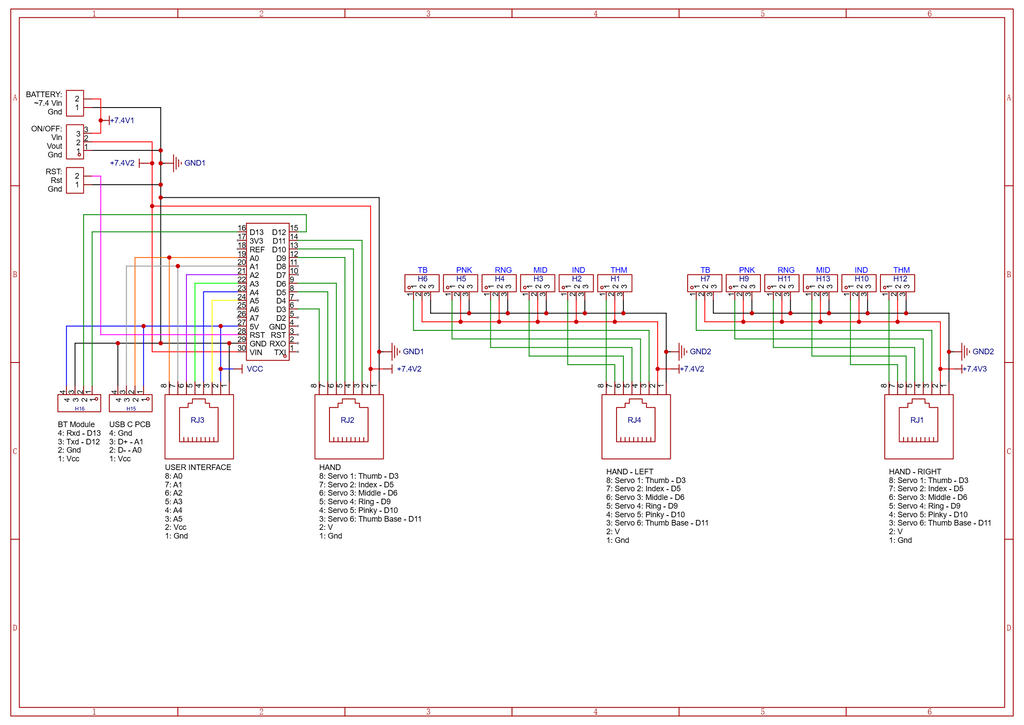

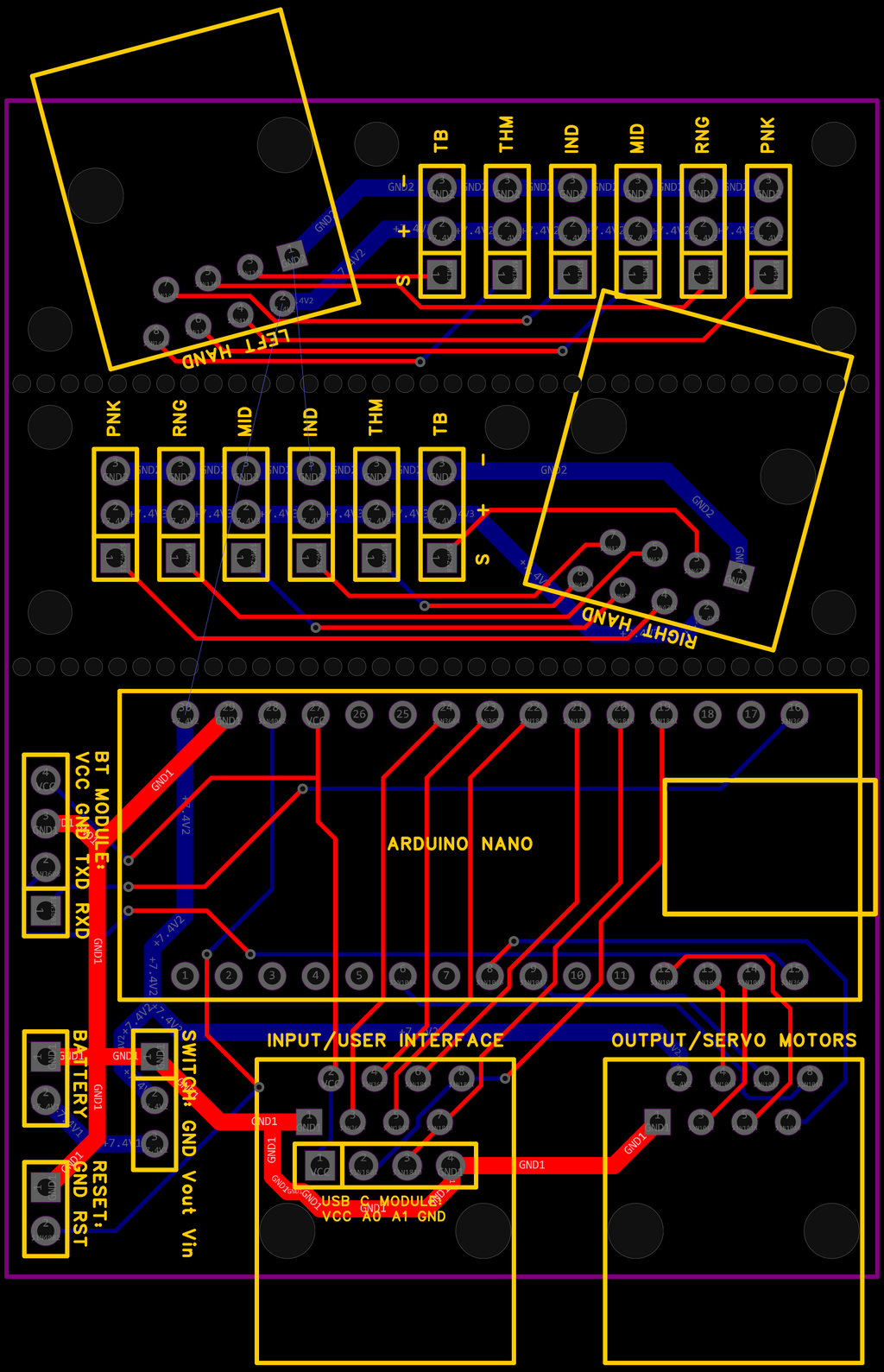

    • Gerber files and user manual for the robotic hand and controller printed circuit boards (PCBs). User manual includes assembly instructions and a bill of materials for the hardware/components used.

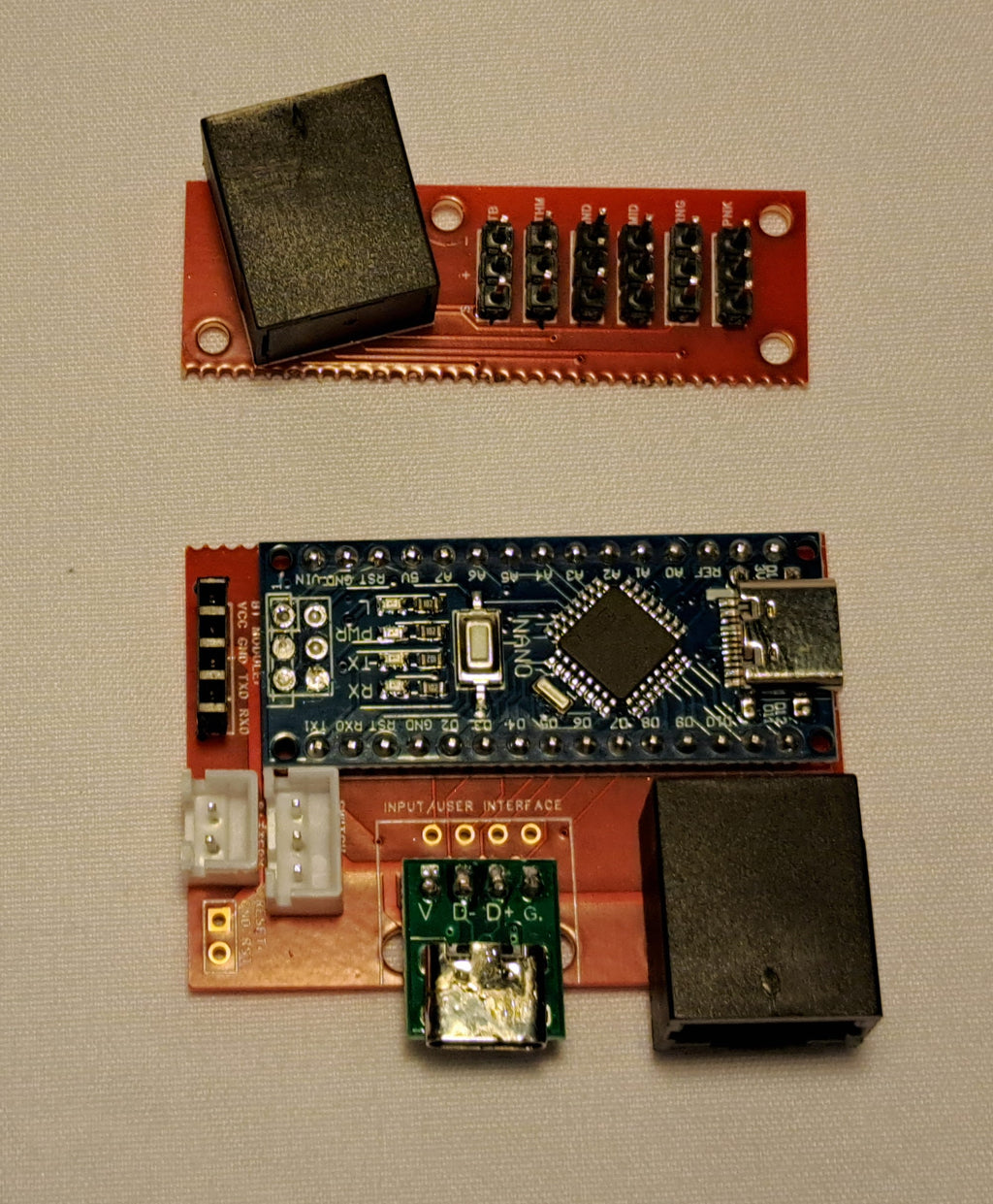

    • The PCB components are intended to be standard, off-the-shelf parts that can be purchased from various online retailers and electronics distributors including an Arduino Nano microcontroller, RJ45 ethernet jacks, and 2.54mm spaced pins and connectors.
    • The PCBs can be ordered from various PCB manufacturers and distributors including DigiKey, PCBWay, and JLCPCB by uploading the Gerber files.
    • Once your PCBs arrive from the manufacturer, the components can be soldered and firmware can be flashed onto the microcontroller.
  • Licensing:
